DCBORE-Geotherm

The add-on option DCBORE-Geotherm can be used to calculate the extraction rate for geothermal wells.

Screenshots
Description

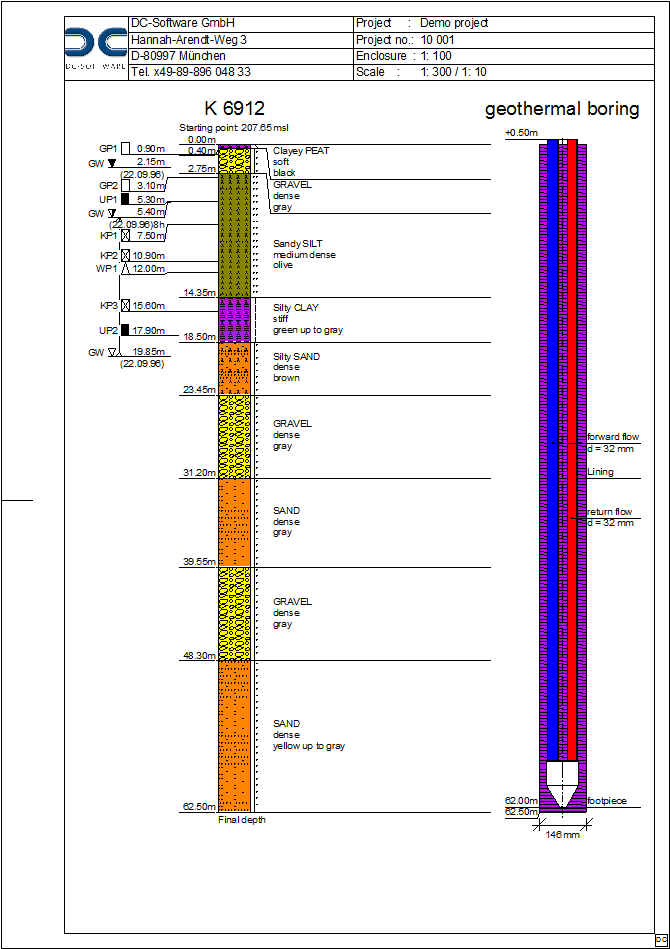

  • Determination of the specific extraction rate for geothermal wells based on the bore profile
  • Consideration of the groundwater level and the operating time of the heat pump
  • Specific extraction rates are stored for each soil type in the symbol editor, changes and extensions can be applied
  • Calculation according to VDI Guideline 4640 Sheet 2, Thermal use of the subsoil, Sep. 2001

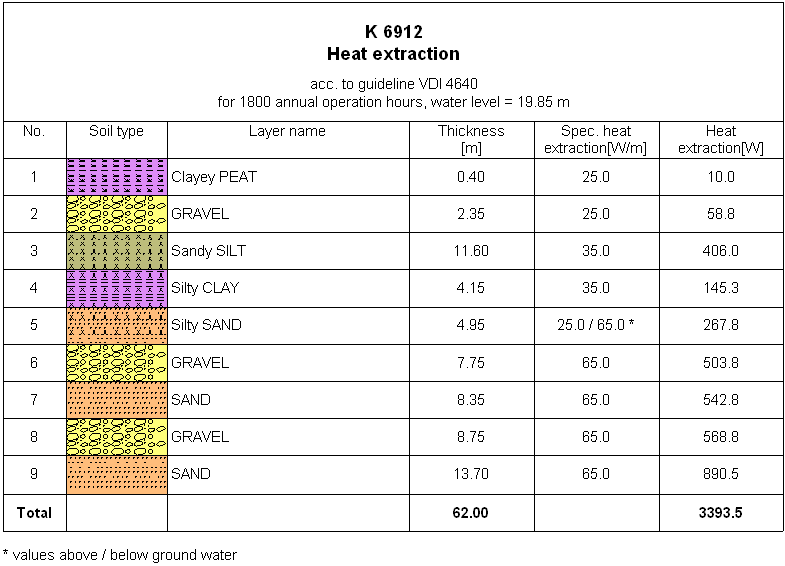

  • Representation of the heat extraction rate at the bore profile as a brief overview or in a well-structured table
  • Only available in combination with DCBORE
Related products
DCBORE

The DCBORE program can be used to represent borehole profiles as well as well lining and gauge instrumentation according to relevant standards and create layer specifications (bore logs). Furthermore, in combination with the add-on options, the program allows the representation of standard penetration tests (SPT) and the determination of the extraction rate of borehole heat exchangers.
