DC-Reinforcement

Option DC-Reinforcement for DC-Pit

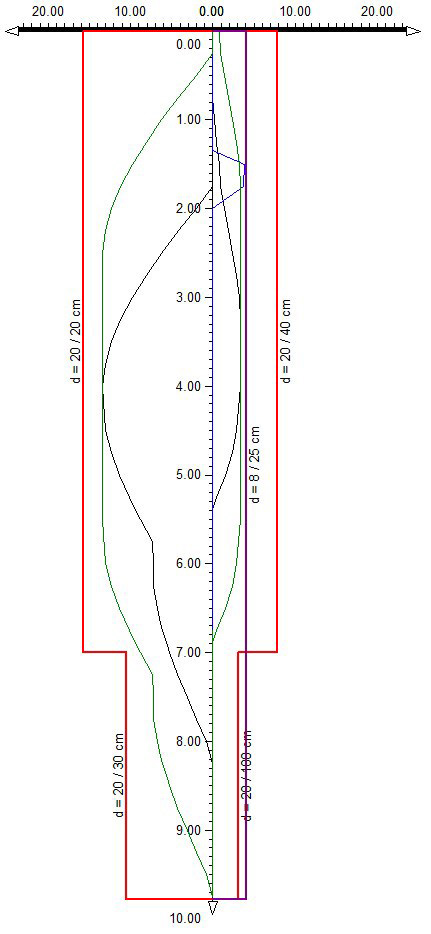

Graduation of reinforcement over envelope line of tensile force

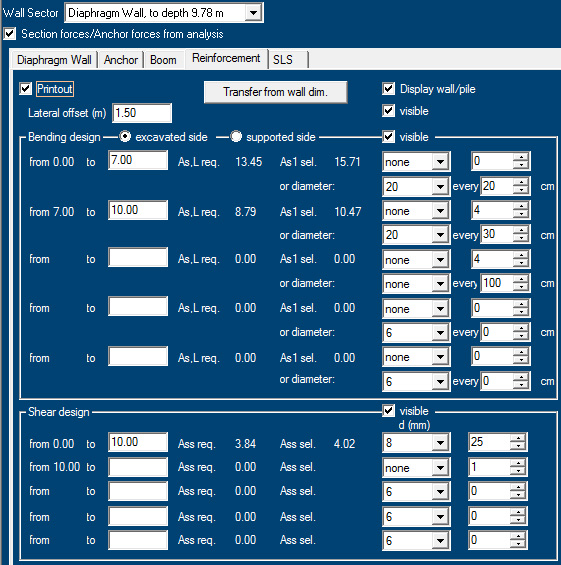

Screenshots
Documents
DCReinforcement.pdf

0,19MB

Description
  • Reinforcement for diaphragm
    walls and bore pile walls
  • Transfer of the required
    bending and shear
    reinforcement from the analysis
  • Define different depth sections
    for the graduation of the
    reinforcement
  • Automatic determination
    of the maximum required
    reinforcement in every section
  • Consideration of the lateral
    offset (shifting the req. As line)
  • Selection of the desired bar
    diameter, mesh or spiral
  • Automatic determination of the
    req. number or pitch
  • Optionally, a larger number or
    smaller pitch may be selected

Available only together with DC-Pit Dimensioning.
