DCLOAD

The DCLOAD program can be used to evaluate and represent plate load tests.

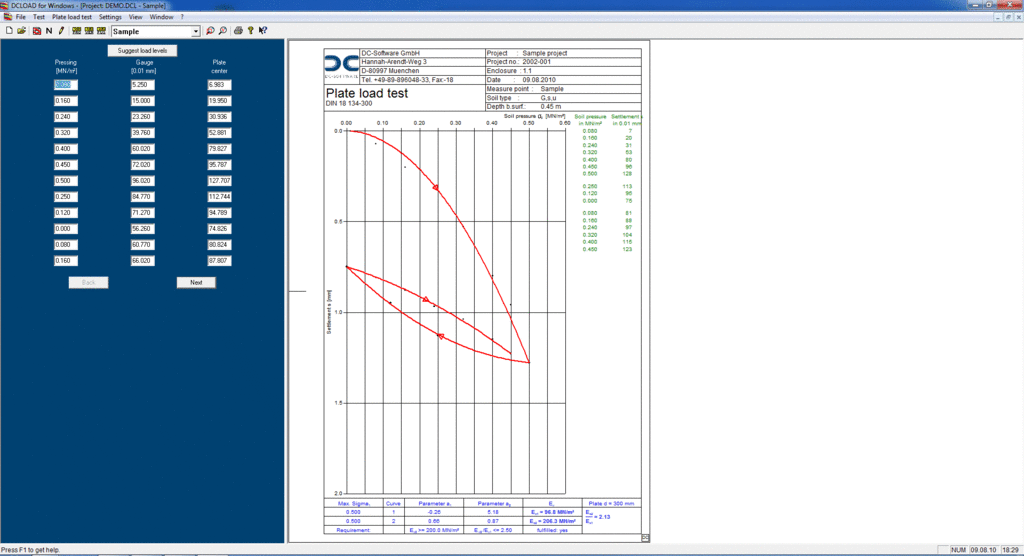

Screenshots
Documents
DCLOAD_DCPRESS.pdf

1,43MB

Videos
DCLOAD.wmv

12,18MB

Description
  • Entry of the loading as a force or as soil pressure
  • Entry of the measurement with one or three dial gauges
  • Entry of the settlement in mm or 1/100 mm
  • Optional evaluation of the deformation modulus Ev or the subgrade reaction modulus kS
  • Evaluation of Ev1, Ev2, Ev3 and relation of Ev2/Ev1
  • Comparison of the evaluation results with target values
  • Representation in the diagram with or without indication of the measured values
  • Output options: printer, PDF
  • Import interfaces: add-on option DCLOAD-Straßentest
  • Export interfaces: graphics export in JPG format, DXF export
  • The add-on option DCLOAD-Straßentest provides an interface for importing measurement data from the measuring programs of the companies Straßentest and Freundel and the HMP and ANIX measuring devices

Relevant standards

  • DIN 18134
  • ÖNORM B 4417
  • SN 670 317
  • BS 1377-9
Related products
DCLOAD-Strassentest

The add-on option DCLOAD-Straßentest can be used to import plate load test data.
