DC-Bearing

Bearing capacity analysis acc. to Eurocode 7 / DIN 1054:2010 and 2005 / DIN 4017 / SIA 267 / OENORM B 4435-2 / Terzaghi / Brinch Hansen

Screenshots
Documents
DCBearing.pdf

0,88MB

Videos
Description

Analysis of bearing capacity acc. to Eurocode 7 (DIN EN 1997-1 with DIN 1054:2010, OENORM B 1997-1-1, NF EN 1997-1, BS EN 1997-1, UNI EN 1997-1 with NTC 2008, UNE EN 1997-1 with DB SE-C and free settings) / DIN 4017 / DIN 1054:2005 / SIA 267 / OENORM B 4435-2 / Terzaghi / Brinch Hansen

  • Support of all the 3 Design Approaches acc. to Eurocode 7
  • adjustable for any country
  • with earthquake analysis acc. to Eurocode 8-5 and SIA 267
  • Rectangular, strip and circular footings
  • Display of support and plate
  • Variable soil layering
  • Water levels in order to consider the lift
  • Analysis with weighted layer parameters
  • Load cases, eccentric and inclined loads
  • Excavation conditions with slopes
  • Analysis of the failure load, perm. load, safety
  • Table for different foundation widths

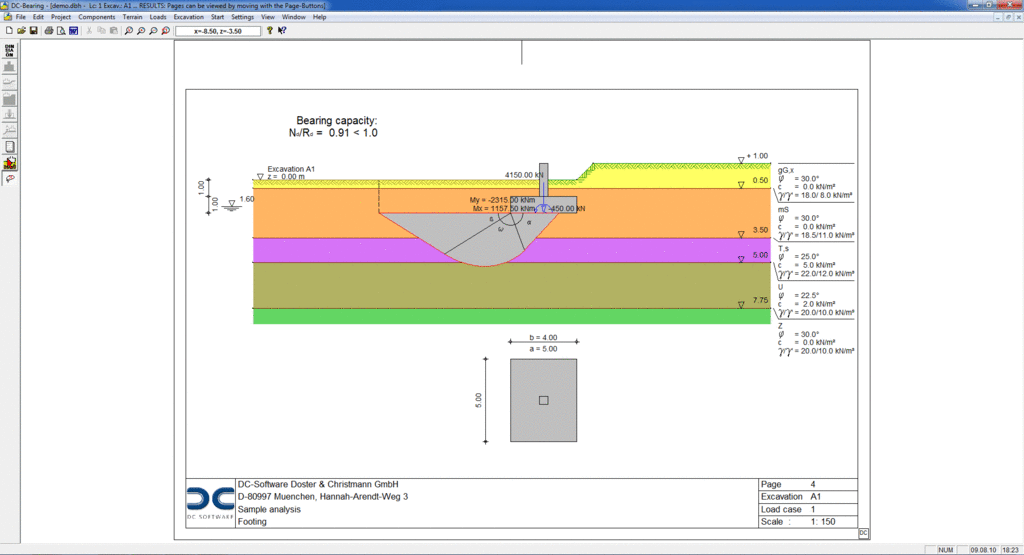

  • Graphic with view, plan and unit of failure
  • Simple change with double click
  • Inclined foundation base possible
  • New failure figure acc. to DIN 4017:2006 / EC 7
  • Export graphic in JPG format (e.g. for Word)
  • Result output in highest graphics quality
  • Font free selectable
  • Optionally graphics in the text
  • with graphics elements to draw and label in the result graphics
  • import of DXF graphics as a background
  • RTF export of the results
  • English, German, French, Romanian, Bosnian language
