DC-Nail

Soil nailing incl. wall design acc. to Eurocode 7 / DIN 1054:2010 and 2005 / SIA 267 / approvals

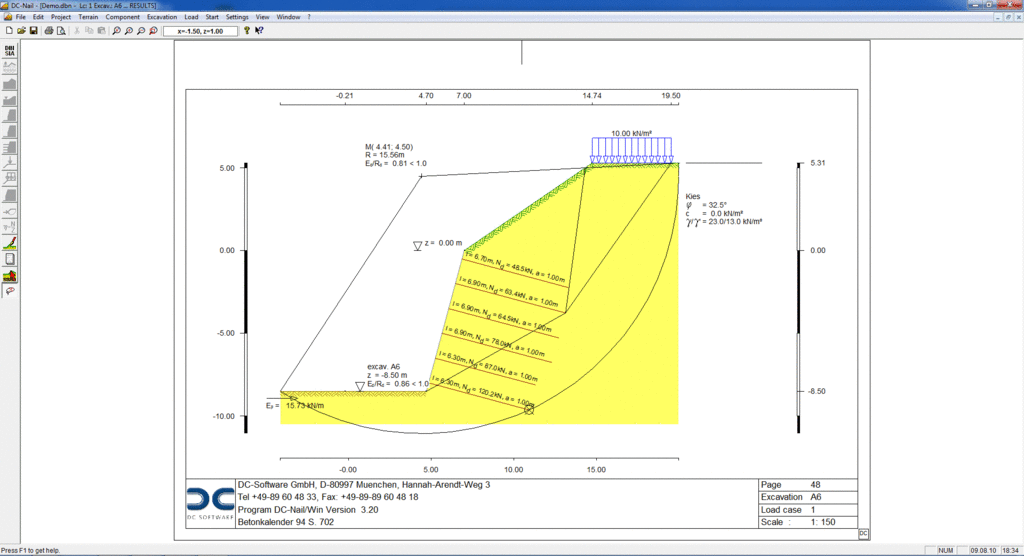

Screenshots
Documents
DCNail.pdf

0,82MB

Videos
DCNail.avi

15,11MB

DCNail.wmv

6,31MB

Description

Soil nailing acc. to Eurocode 7 (DIN EN 1997-1 with DIN 1054:2010, OENORM B 1997-1-1, NF EN 1997-1, BS EN 1997-1, UNI EN 1997-1 with NTC 2008, UNE EN 1997-1 with DB SE-C and free settings) / DIN 1054:2005 / SIA 267 / approvals

  • Support of all the 3 Design Approaches acc. to Eurocode 7
  • adjustable for any country
  • with earthquake analysis acc. to Eurocode 8-5 and SIA 267
  • Arbitrary layer courses
  • Earth pressure calculation acc. to Culmann
  • Customizable wall course with grading
  • Free ground water courses
  • Different excavation conditions
  • Simple input with Auto-excavation
  • Load cases with concentrated and distributed loads
  • Analysis: general block sliding approach
  • Analysis of inner and outer stability
  • Calculation of nail forces and safeties
  • Analysis of nail lengths and diameters
  • Design of the shotcrete wall (plate/beam)
  • Punching analysis at the nail head plate
  • Stability analysis:
    Bearing capacity and slope stability
  • Extensive result output
  • Graphical display: excavations and load cases
  • Nail geometry, section forces, reinforcement
  • Simple changes with double click
  • Copy and paste of elements
  • with graphics elements to draw and label in the result graphics
  • import of DXF graphics as a background
  • Export graphic in JPG format (e.g. for Word)
  • Design acc. to EC 2, DIN EN 1992, DIN 1045-1, SIA 262, OENORM B 1992, OENORM B 4700
  • English, German, French, Italian, Spanish, Bulgarian language

Version française: DC-Clou

Versione italiana

Integrated foundation analysis with interface to DC-Nail see program DC-Integra.
