Option for the program DC-Integra with DC-Integra 3D:
display of sewer pipes, water, gas, electricity, district heat, cable trench in the 3D model
Product sheet for DC-Integra with 3D options
3D model, display and volume calculation: WMV format
Productmovie DCIntegra3DAnchor: WMV format
Sample video for the work with DC-Integra 2D: Plan, foundation pit wall types, start of the corresponding analysis program, transfer of the soil layer depths and water levels, integration of result graphics.
- Display of different types of pipeworks
- Wastewater, water, gas, electricity, district heat, cable trenches
- Select the color for each type

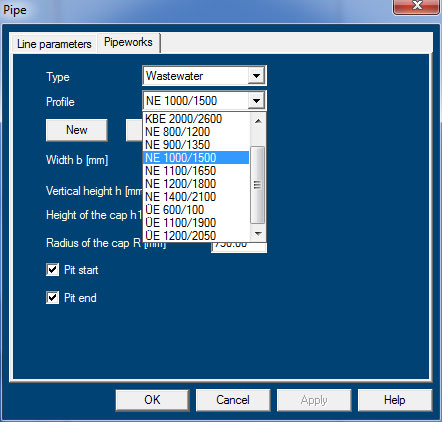

- Different sections: sewer pipe profiles, circular profiles, rectangular profiles
- Different dimensions of sewer pipe (egg-shaped) profiles may be defined arbitrarily
- Optionally connection of the pipes by pits
- Definition with coordinates or with inclination
- Reference to a reference height or with heights above sea level
- Overview of all the pipeworks by 3D display: rotate, enlarge and reduce arbitrarily
Only together with DC-Integra and DC-Integra 3D.
