DC-Integra 3D/Anchor

3D display and collision check of anchors:

check for collision with anchors, pipeworks and buildings

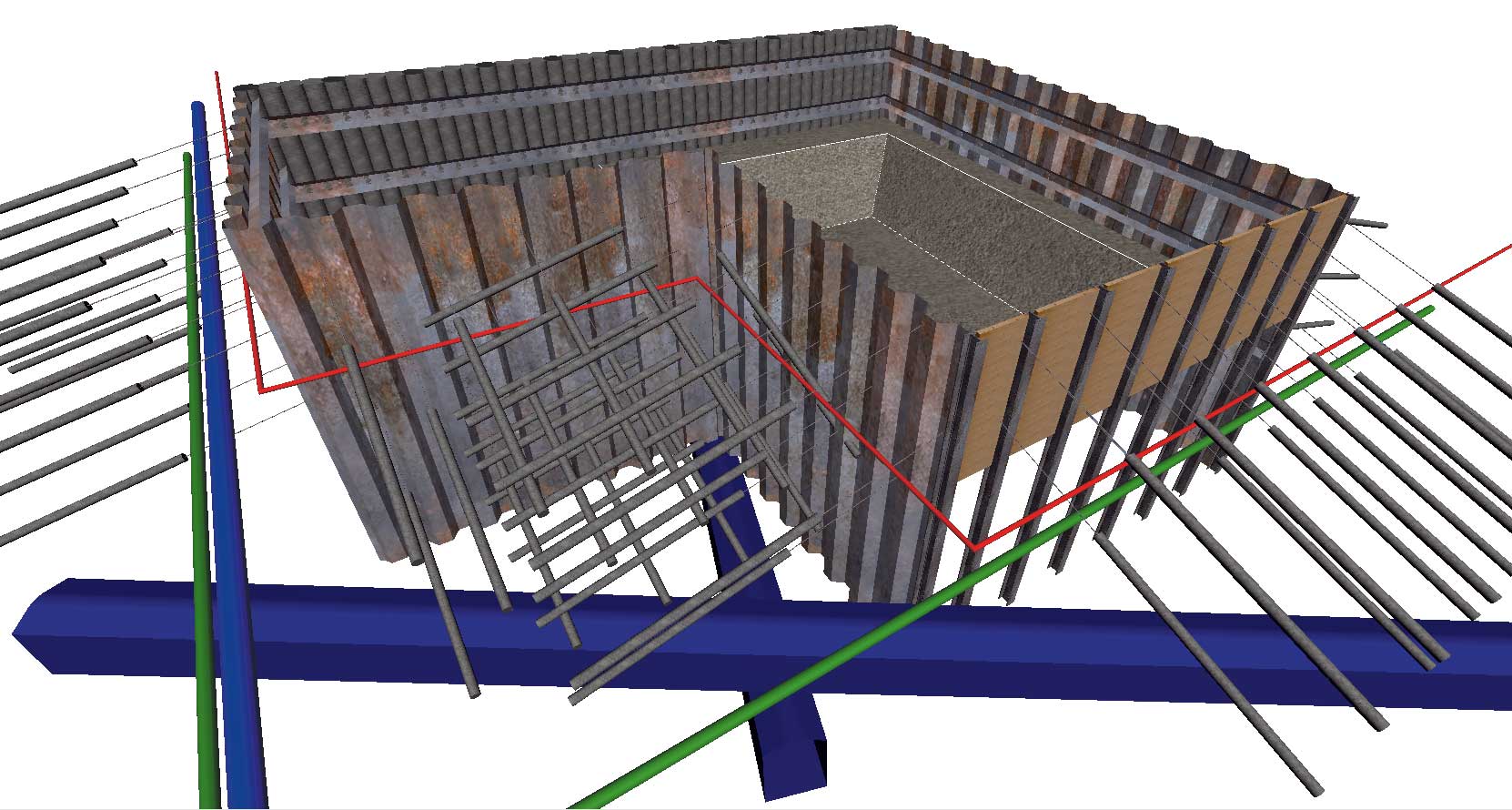

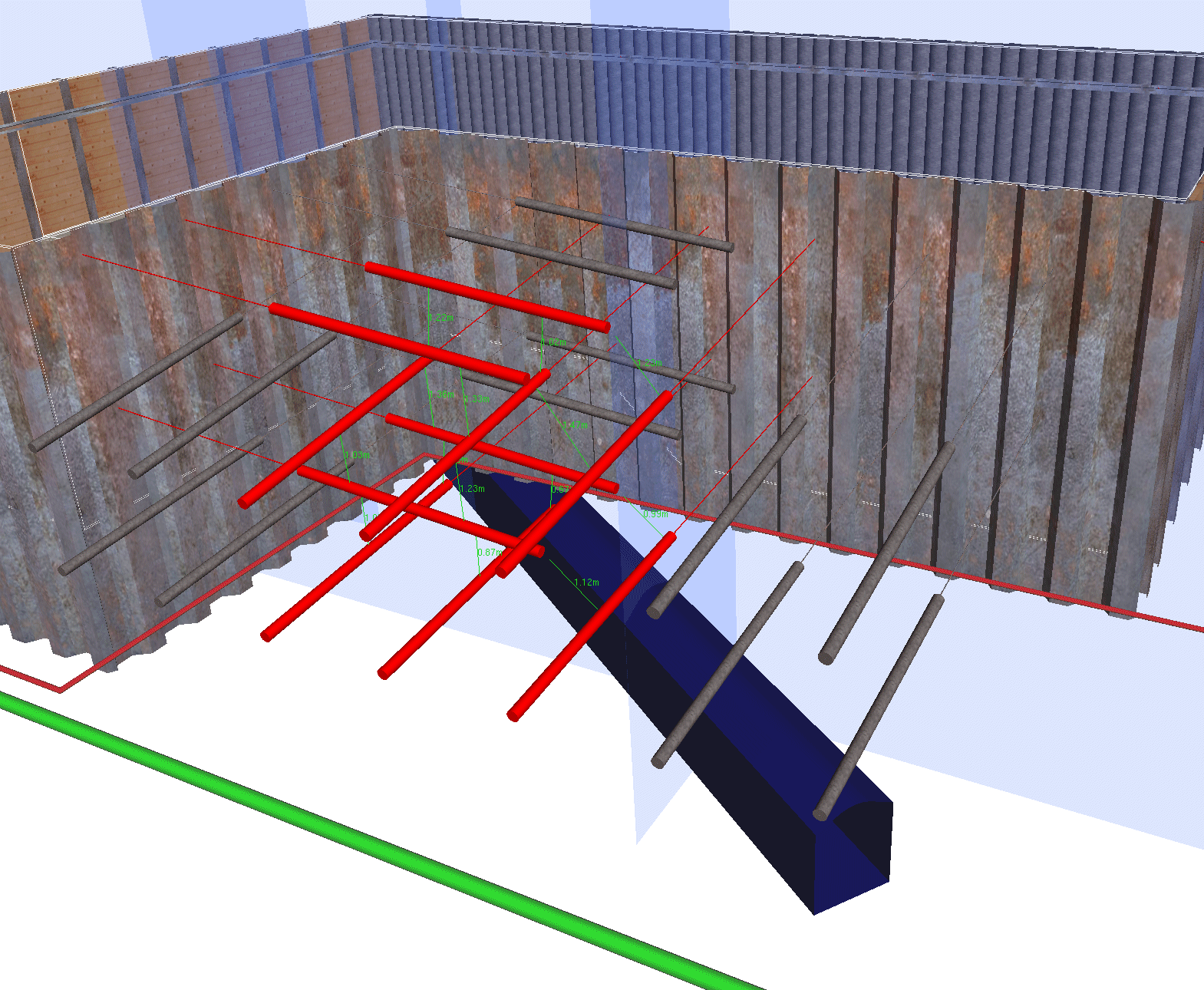

Screenshots
Documents
DC-Integra 3D/Anchor

Product sheet for DC-Integra with 3D options

3,71MB

Videos
DCIntegra3DAnchor (avi)

Productmovie DCIntegra3DAnchor: AVI format

81,71MB

DCIntegra3DAnchor (wmv)

Productmovie DCIntegra3DAnchor: WMV format

31,24MB

DC-Integra 3D

3D model, display and volume calculation: WMV format

31,51MB

DC-Integra 2D

Sample video for the work with DC-Integra 2D: Plan, foundation pit wall types, start of the corresponding analysis program, transfer of the soil layer depths and water levels, integration of result graphics.

46,08MB

Description

The option DC-Integra 3D/Anchor for the program DC-Integra 3D with option DC-Integra 3D provides the following functions:

  • Definition of anchor layers with boom at the foundation pit walls
  • Depth, length, inclination of the anchors, length and diameter of the fixed length, boom profile
  • Change of inclination and depth for single anchors, splitting of booms
  • 3D display of anchor layers and booms
  • Turning and shifting of the display in the 3D view
  • Easy check of the position of the anchors against each other
  • Automatic check for collision between anchors
  • Consider a minimum distance between the fixed lengths
  • Collision check against pipeworks (wastewater, water, electricity, gas, ...) and with buildings
  • Easy changing of anchor depth or inclination at problematic points

Only together with DC-Integra and DC-Integra 3D.
