DC-Pile/Npw

Design of piles in slopes, e.g. for noise protection walls, acc. to ZTV-Lsw 06 / M EBGS-Lsw 2018 / approach by Vogt

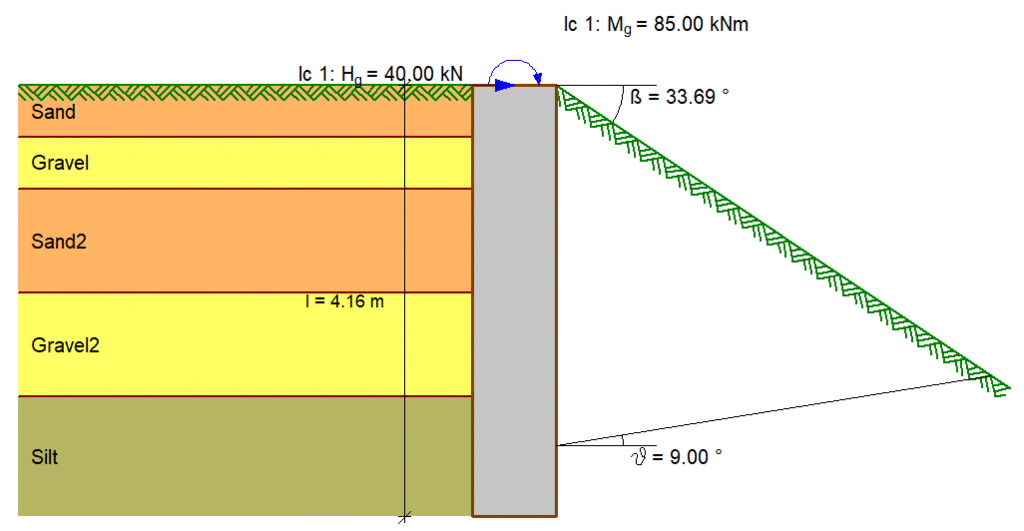

Screenshots
Documents
Product sheet DC-Pile/Npw

Product informations for DC-Pile/Npw

0,12MB

Videos
DC-Pile/Npw

Analysis of piles in slopes, e.g. for noise protection walls, acc. to ZTV-Lsw 06 resp. method of Vogt

71,20MB

Description

Design of piles in slopes, e.g. for noise protection walls acc. to ZTV-Lsw 06 / approach by Vogt and acc. to Eurocode 7 / DIN 1054:2010

  • Available as an addition for the program DC-Pile for bore piles and driven piles
  • Enhanced method for layered soil with different parameters
  • Iteration of the sliding block for the slip joint with minimum safety
  • Iteration of the pile length for the verification of the moment equilibrium
  • Additional length Δt for the verification of the horizontal force equilibrium
  • with verifications for the vertical forces acc. to bulletin M EBGS-Lsw 2018

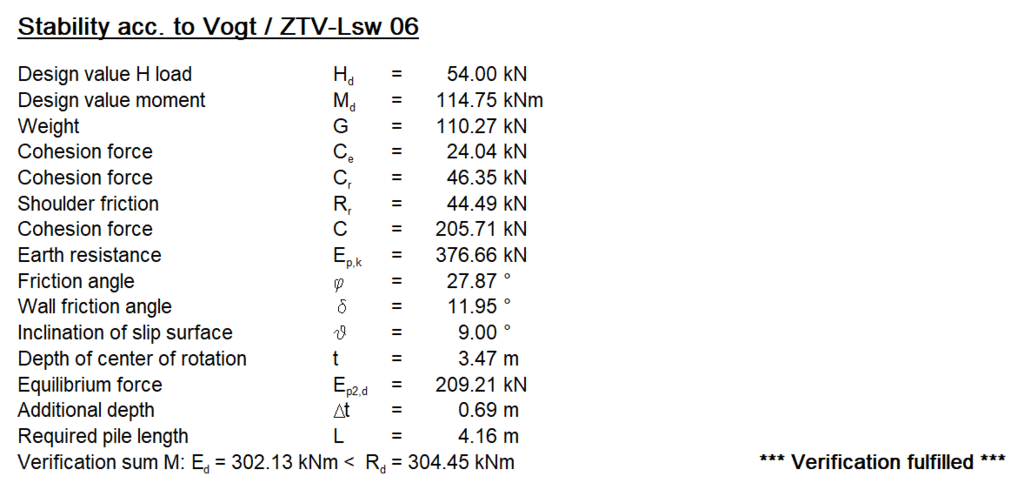

  • Clearly arranged output with graphics and numerical verification

Only available as an addition to the program DC-Pile.
