DC-Vibro

Analysis of vibrocompaction (stone columns) acc. to Priebe, Eurocode 7 / DIN 1054:2010 and 2005 / SIA 267

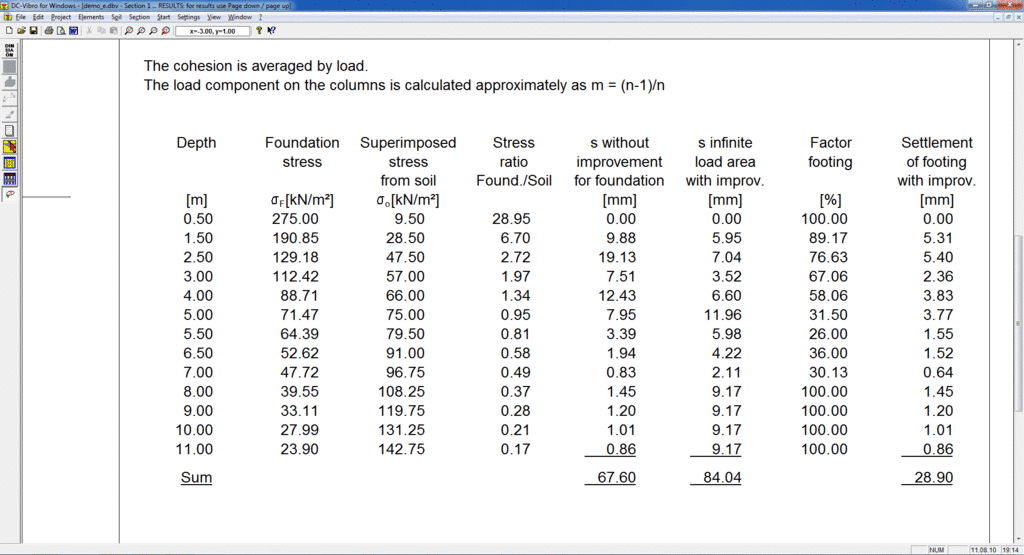

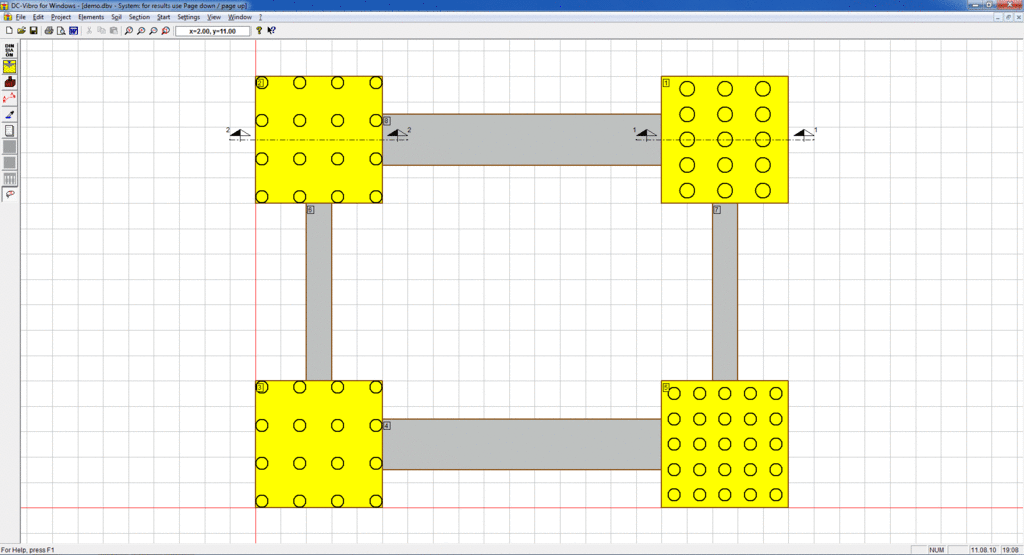

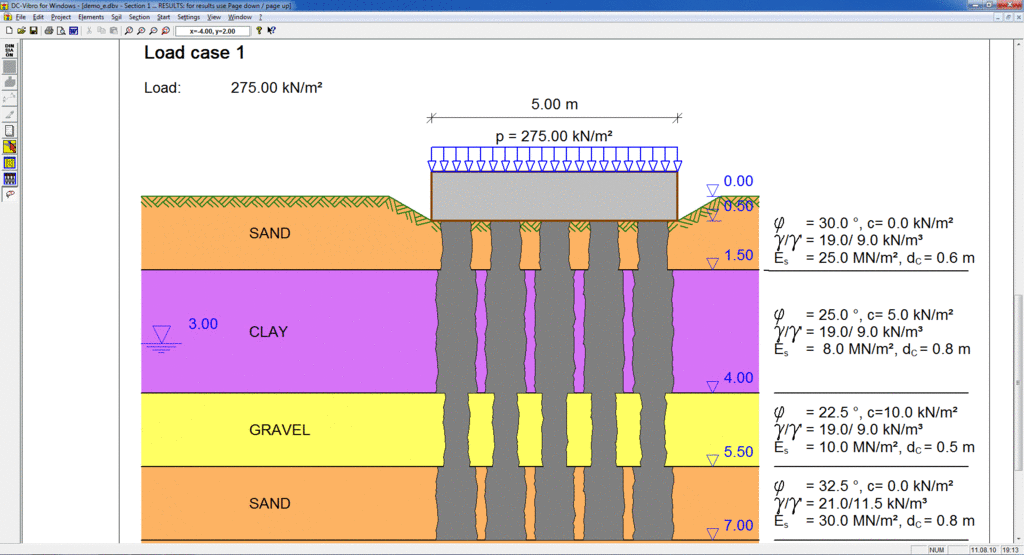

Screenshots
Documents
Product DC-Vibro

Product sheet

0,22MB

Product DC-Vibro with circular ring footings

DC-Vibro NEW with circular ring footings

1,13MB

Videos
DC-Vibro

Sample video for the analysis of stone columns

29,91MB

Description

Analysis of settlement with soil improvement by stone columns

  • Analysis foll. Priebe´s method
  • Now optionally with Rigid Inclusions / stiff columns
  • Load transfer layers with punching above and below the columns
  • Application acc. to 2003 for floating foundations
  • Any number of footings
  • Single, strip and circular footings
  • Unlimited load areas
  • Different load cases
  • Different layers for any analysis section
  • Variable layers with column diameters
  • Columns: triangular or rectangular raster
  • Column arrangement with arbitrary distances
  • Immediate control with preview function
  • Analysis of the settlement with improvement
  • Analysis of the bearing capacity
  • Optionally comparison without improvement
  • Quick changes of parameters
  • Switching from the analysis to the input
  • Simple changes with double click
  • with graphics elements to draw and label in the result graphics
  • import of DXF graphics as a background
  • Export graphic in JPG format (e.g. for Word)
  • RTF Export of the results
  • Bearing capacity with partial safety factors acc. to Eurocode 7 (DIN EN 1997-1 with DIN 1054:2010, OENORM B 1997-1-1, NF EN 1997-1, BS EN 1997-1, UNI EN 1997-1 with NTC 2008, UNE EN 1997-1 with DB SE-C and free settings) / DIN 1054:2005 / SIA 267 / OENORM B 4435-2
  • English, German, French, Romanian language

Version française
Versiunea romana

DC-Vibro was developed in cooperation with Vibroflotation Group
